import numpy as np
# definir les filtres RGB (simplifies)
def rgb_filters(wavelengths):
r_filter = np.exp(-0.5 * ((wavelengths - 575) / 50) ** 2)
g_filter = np.exp(-0.5 * ((wavelengths - 535) / 50) ** 2)
b_filter = np.exp(-0.5 * ((wavelengths - 445) / 50) ** 2)
return np.vstack([r_filter, g_filter, b_filter])
# generer un faux spectre de reflectance
def generate_spectrum(c1, n_wavelengths=31):
wavelengths = np.linspace(400, 700, n_wavelengths)
width = 30
amplitude = 1
spectrum = np.exp(-0.5 * ((wavelengths - c1) / width) ** 2) * amplitude
filters = rgb_filters(wavelengths)
rgb_raw = filters @ spectrum
rgb = 2*rgb_raw / np.sum(filters[1]) # bricolage
#np.max(rgb_raw) if np.max(rgb_raw) > 0 else rgb_raw
patch = np.tile(np.clip((255 * rgb), 0, 255).astype(np.uint8), (90, 90, 1))
return wavelengths, spectrum, filters, rgb, patch
import plotly
import plotly.graph_objects as go
from plotly.subplots import make_subplots
# white theme
plotly.io.templates.default = "plotly_white"
center_values = np.linspace(430, 650, 10)
wavelengths, spectrum, filters, rgb, patch = generate_spectrum(center_values[0])
fig = make_subplots(
rows=1,
cols=3,
column_widths=[0.62, 0.2, 0.18],
specs=[[{"type": "xy"}, {"type": "xy"}, {"type": "image"}]],
subplot_titles=("", "Projection RGB", "Couleur reconstruite"),
horizontal_spacing=0.08,
)
# remove grid on the first subplot
fig.update_xaxes(showgrid=False, row=1, col=1)
fig.update_yaxes(showgrid=False, row=1, col=1)
# trace 0: spectre mobile
fig.add_trace(
go.Scatter(
x=wavelengths,
y=spectrum,
mode="lines",
name="Gaussienne mobile",
line=dict(color="black", width=3),
),
row=1,
col=1,
)
# traces 1..3: filtres fixes
fig.add_trace(
go.Scatter(x=wavelengths, y=filters[0], mode="lines", name="Filtre R", line=dict(color="red", dash="dash"), opacity=0.35),
row=1,
col=1,
)
fig.add_trace(
go.Scatter(x=wavelengths, y=filters[1], mode="lines", name="Filtre G", line=dict(color="green", dash="dash"), opacity=0.35),
row=1,
col=1,
)
fig.add_trace(
go.Scatter(x=wavelengths, y=filters[2], mode="lines", name="Filtre B", line=dict(color="blue", dash="dash"), opacity=0.35),
row=1,
col=1,
)
# trace 4: barres RGB
fig.add_trace(
go.Bar(x=["R", "G", "B"], y=rgb, marker_color=["red", "green", "blue"], showlegend=False),
row=1,
col=2,
)
# trace 5: patch couleur
fig.add_trace(
go.Image(z=patch, hovertemplate="R=%{z[0]}<br>G=%{z[1]}<br>B=%{z[2]}<extra></extra>"),
row=1,
col=3,
)
frames = []
for c1 in center_values:
wavelengths, spectrum, filters, rgb, patch = generate_spectrum(c1)
frames.append(
go.Frame(
name=f"{c1:.0f}",
data=[
go.Scatter(x=wavelengths, y=spectrum),
go.Bar(x=["R", "G", "B"], y=rgb),
go.Image(z=patch),
],
# Update only traces 0 (spectre), 4 (barres), 5 (image)
traces=[0, 4, 5],
)
)
fig.frames = frames
fig.update_xaxes(title_text="Longueur d'onde (nm)", row=1, col=1)
fig.update_yaxes(title_text="Intensite", row=1, col=1)
fig.update_yaxes(range=[0, 1.1], row=1, col=2)
fig.update_xaxes(showgrid=False, visible=False, row=1, col=3)
fig.update_yaxes(showgrid=False, visible=False, row=1, col=3)
fig.update_layout(
height=420,
margin=dict(l=20, r=20, t=70, b=20),
legend=dict(orientation="h", yanchor="bottom", y=1.02, xanchor="left", x=0),
sliders=[
dict(
active=0,
currentvalue={"prefix": "Centre spectre : "},
pad={"t": 20},
steps=[
dict(
label=f"{c1:.0f} nm",
method="animate",
args=[
[f"{c1:.0f}"],
{
"mode": "immediate",
"frame": {"duration": 0, "redraw": True},
"transition": {"duration": 0},
},
],
)
for c1 in center_values
],
)
],
)
fig
Code for generating the cat image beforehand, to avoid reconstruction at runtime for slides (will still do the NMF live)
import torch, torchvision
from spyrit.core.meas import HadamSplit2d
from spyrit.core.noise import Poisson
import matplotlib.pyplot as plt
import tensorly as tl
import numpy as np
from tensorly_hdr.nmf_kl import MU_SinglePixel
from tensorly_hdr.nmf_kl import Lee_Seung_KL_regression
from tensorly_hdr.sep_nmf import snpa
tl.set_backend("pytorch")
# Loading
import json
import ast
# Fetching the spectral measurements
data = np.load("../tensorly_hdr/dataset/obj_Cat_bicolor_thin_overlap_source_white_LED_Walsh_im_64x64_ti_9ms_zoom_x1_spectraldata.npz", allow_pickle=True)
Ymeas = data["spectral_data"]
# Fetching metadata
file = open("../tensorly_hdr/dataset/obj_Cat_bicolor_thin_overlap_source_white_LED_Walsh_im_64x64_ti_9ms_zoom_x1_metadata.json", "r")
json_metadata = json.load(file)[4]
file.close()
# replace "np.int32(" with an empty string and ")" with an empty string
tmp = json_metadata["patterns"]
tmp = tmp.replace("np.int32(", "").replace(")", "")
patterns = ast.literal_eval(tmp) # the list (of list of) of pattern indices (evaluation because stored as text)
wavelengths = ast.literal_eval(json_metadata["wavelengths"])
# Permutation of measurements, that are acquired in an experiment-specific order
from spyrit.misc import sampling as samp
img_size = 64
acq_size = img_size
Ord_acq = (-np.array(patterns)[::2] // 2).reshape((acq_size, acq_size))
Ord_rec = torch.ones(img_size, img_size)
Perm_rec = samp.Permutation_Matrix(Ord_rec)
Perm_acq = samp.Permutation_Matrix(Ord_acq).T
Ymeas = samp.reorder(Ymeas, Perm_acq, Perm_rec)
# Post-processing of the measurements
Y = torch.tensor(Ymeas, dtype=torch.float32).T
del Ymeas
# Unbiased by removing the dark current, estimated as the minimum value of marginals of Y (better?)
dc = tl.sum(Y[:,1])/Y.shape[0] # average of dc over all wavelengths
Y = Y - dc
Y = tl.clip(Y, 0, tl.max(Y))
# Normalization to [0,1]
Y = Y / tl.max(Y)
# Reconstruction with pseudo-inverse
from spyrit.core.meas import HadamSplit2d
import spyrit.misc.sampling as samp
# Patterns are acquired in order Acq, compared to order nat
# Patterns are stored in order Rec in spyrit
acq_size = img_size
meas_op = HadamSplit2d(img_size)
A = meas_op.A # noiseless operator
Anz = torch.cat([A[0:1,:], A[2:,:]], dim=0)
# Remove row of zero and remove 16 first bands that are null
nbremove = 16
Ynz = torch.cat([Y[nbremove:,0:1], Y[nbremove:,2:]], dim=1)
wavelengths_nz = wavelengths[nbremove:]
# five bands binning
bin_size = 8
Ynz_binned = tl.zeros((Ynz.shape[0]//bin_size, Ynz.shape[1]))
wavelengths_binned = []
for i in range(0, Ynz.shape[0], bin_size):
if i+bin_size <= Ynz.shape[0]:
Ynz_binned[i//bin_size,:] = tl.mean(Ynz[i:i+bin_size,:], axis=0)
wavelengths_binned.append(np.mean(wavelengths_nz[i:i+bin_size]))
else:
Ynz_binned[i//bin_size,:] = tl.mean(Ynz[i:,:], axis=0)
wavelengths_binned.append(np.mean(wavelengths_nz[i:]))
Ynz = Ynz_binned
wavelengths_nz = wavelengths_binned
# define custom forward and adjoint forward functions
def forward(x):
# x@Anz.T or Anz@x
# x is of shape (B, N**2) # batch first
# reshape to (B, N, N)
temp = x.reshape((x.shape[0], img_size, img_size)) # Whyyyyyyy >????
temp = meas_op.forward(temp).T # shape (M, B)
# Removing the zero row of A changes the forward A@X
return torch.cat([temp[0:1,:], temp[2:,:]], dim=0)
def adjoint(y):
# Also implemented as a contraction in spyrit
return y@Anz
# Pseudo-inverse reconstruction, the NNLS is quite slow here
X_rec = torch.linalg.lstsq(Anz, Ynz.T).solution.T
# Saving X_rec with pytorch
np.savez("../tensorly_hdr/dataset/cat_HSI_reconstructed.npz", X_rec=X_rec.cpu().numpy(), wavelengths=wavelengths_nz)
# This will be in the slides
# load with torch
data = np.load("../tensorly_hdr/dataset/cat_HSI_reconstructed.npz")
# convert to pytorch tensor
X_rec = torch.tensor(data["X_rec"], dtype=torch.float32)
wavelengths_nz = data["wavelengths"]

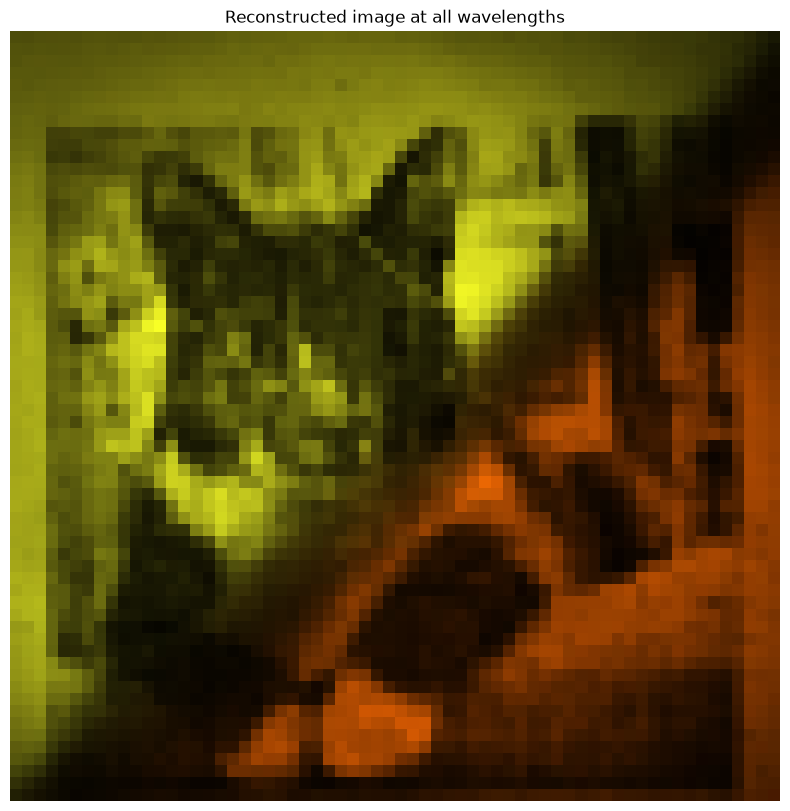

# Show cat in fake three colors from the hyperspectral cube X_rec
plt.figure(figsize=(12,10))
# make a mapping between hyperspectral and RGB values, for visualization only
def rgb_filters(wavelengths):
r_filter = torch.exp(-0.5 * ((wavelengths - 575) / 50) ** 2)
g_filter = torch.exp(-0.5 * ((wavelengths - 535) / 50) ** 2)
b_filter = torch.exp(-0.5 * ((wavelengths - 445) / 50) ** 2)
return torch.stack([r_filter, g_filter, b_filter])
# RGB cube
filters = rgb_filters(torch.tensor(wavelengths_nz, dtype=torch.float32))
rgb_cube = filters @ X_rec # shape (3, N**2)
# Make into RGB image
rgb_image = rgb_cube.reshape((3, img_size, img_size))
rgb_image = rgb_image / torch.max(rgb_image) # normalize for visualization
# make shape N N 3
rgb_image = np.transpose(rgb_image, (1, 2, 0))
plt.imshow(np.rot90(rgb_image, 2))
plt.title("Reconstructed image at all wavelengths")
plt.axis('off')
plt.show()
Clipping input data to the valid range for imshow with RGB data ([0..1] for floats or [0..255] for integers). Got range [-0.0008762767..1.0].
# Processing with NMF
rank = 3
Kset, W0, A0 = snpa(X_rec, rank, verbose=True)
0 [0, 0, 0]
1 [1688, 0, 0]
2 [1688, 2547, 0]
Returning [1688, 2547, 1816] as estimated pure pixel indices

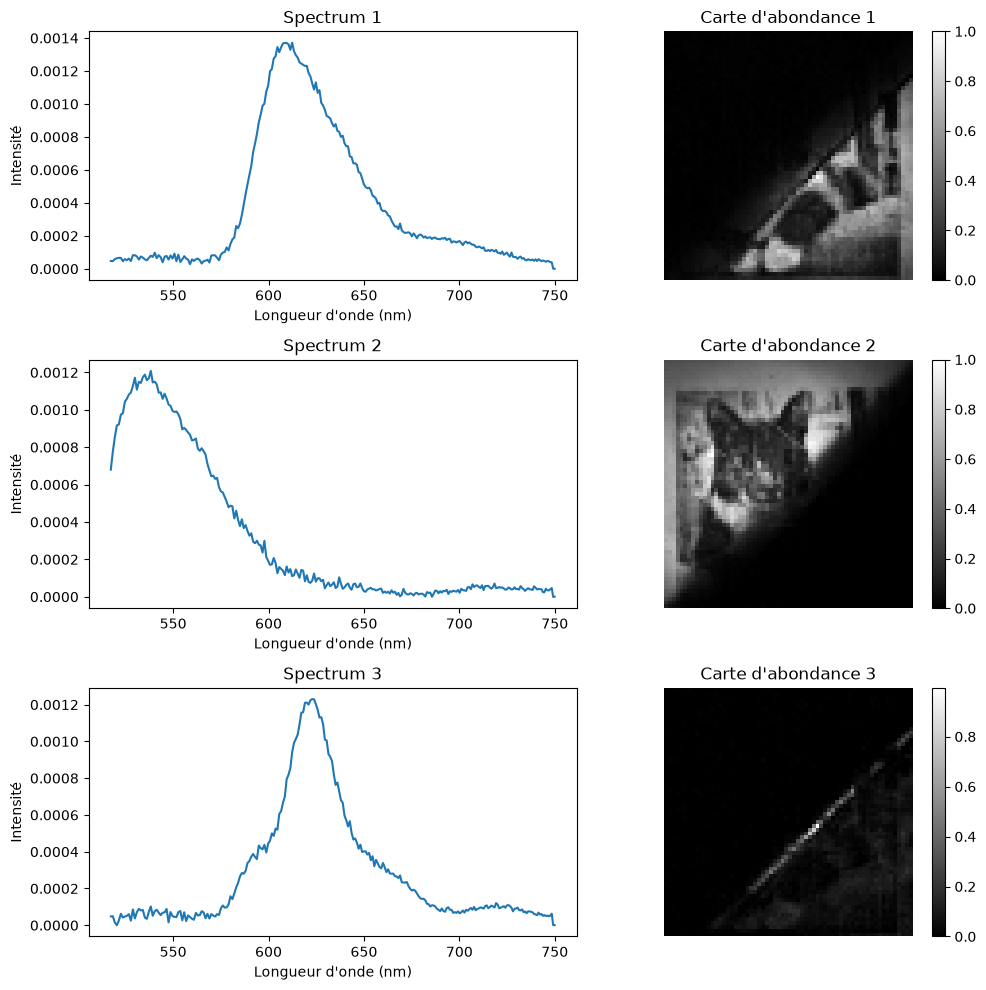

# Plotting results
A0norms = [torch.max(A0[i,:]) for i in range(rank)]
# show hypercube at some wavelengths and some spectra
plt.figure(figsize=(10,10))
for i in range(rank):
plt.subplot(rank,2,2*i+1)
plt.plot(wavelengths_nz, A0norms[i]*W0[:,i].cpu().numpy())
plt.title(f"Spectrum {i+1}")
plt.xlabel("Longueur d'onde (nm)")
plt.ylabel("Intensité")
plt.subplot(rank,2,2*i+2)
plt.imshow(np.rot90(A0[i,:].reshape(64,64), 2), cmap='gray')
plt.title(f"Carte d'abondance {i+1}")
plt.colorbar(fraction=0.046, pad=0.04)
plt.axis('off')
plt.tight_layout()
plt.show()
/tmp/ipykernel_3667/3451788003.py:8: DeprecationWarning: __array_wrap__ must accept context and return_scalar arguments (positionally) in the future. (Deprecated NumPy 2.0)
plt.plot(wavelengths_nz, A0norms[i]*W0[:,i].cpu().numpy())
Slide adaptation of the code for the HRSI
import numpy as np
import plotly.graph_objects as go
import tensorly as tl
import matplotlib
import matplotlib.pyplot as plt
# Generating toy image
n1 = 30
n2 = 40
r = 3
sig = 0.2 # 0.15 # 0.05
# Components will be Gaussian distributions, here is the macro to generate them
def gauss(x, m, sig, thresh=0.1):
# max is 1
out = np.exp(-(x-m)**2/sig**2)
out[out < thresh] = 0
return out
# Generating the data as a mixture of separable Gaussians
x = np.linspace(0, n1-1, n1) # 1D abcisse
y = np.linspace(0, n2-1, n2)
W = np.zeros([n1, r])
W[:,0] = gauss(x, 5, 3)
W[:,1] = gauss(x, 15, 5)
W[:,2] = gauss(x, 25, 10)
H = np.zeros([n2, r])
H[:, 0] = gauss(y, 10, 5)
H[:, 1] = gauss(y, 20, 6)
H[:, 2] = gauss(y, 25, 5)
trueNMF = (None, [W, H])
Y = W@H.T # NMF model
rng = np.random.default_rng(1246)
Yn = Y + sig*rng.random((n1, n2)) # corruption with gaussian noise
# initialization
W0 = 0*W + 0.5*rng.random(W.shape)
H0 = 0*H + 0.5*rng.random(H.shape)
# Storing output factors for various regularization in dictionaries
We = dict()
He = dict()
# Chose the grid values for the hyperparameter
lambset = [0, 0.05, 0.1, 0.15, 0.2, 0.3, 0.4, 0.6, 0.7, 0.75, 0.78, 0.8, 1, 1.2, 1.5, 2, 3, 4, 5, 5.2, 6, 20]
import copy
for lamb in lambset:
# Computing the sparse NMF with tensorly (the algorithm is HALS, which is the state of the art for this problem)
out = tl.decomposition.non_negative_parafac_hals(Yn, r, sparsity_coefficients=[lamb, lamb], init=copy.deepcopy((None, [W0, H0])))
# Estimated factors
We[lamb] = out[1][0]
He[lamb] = out[1][1]
# Set estimates as new initialization for the next iteration (warm start)
W0 = We[lamb]
H0 = He[lamb]
# rescale We so that when a column of W is 0, so is the corresponding column of H
norms = tl.max(We[lamb], axis=0)
for q in range(r):
if norms[q] > 1e-8:
We[lamb][:, q] = We[lamb][:, q]/norms[q]
He[lamb][:, q] = He[lamb][:, q]*norms[q]
else:
We[lamb][:, q] = We[lamb][:, q]*0
He[lamb][:, q] = He[lamb][:, q]*0
# --------------------------------------------------
# Pack all computed factors into one array
# shape = (n_lambda, n1, r)
# --------------------------------------------------
Wall = np.stack([We[lam] for lam in lambset])
colors = ["blue", "green", "red"]
# --------------------------------------------------
# Initial traces (lambda = lambset[0])
# --------------------------------------------------
fig = go.Figure()
for q in range(r):
fig.add_trace(
go.Scatter(
x=x,
y=Wall[0, :, q],
mode="lines",
name=f"Component {q+1}",
line=dict(color=colors[q]),
)
)
# --------------------------------------------------
# Slider steps
# --------------------------------------------------
steps = []
for k, lam in enumerate(lambset):
step = dict(
method="update",
args=[
{
"y": [
Wall[k, :, 0],
Wall[k, :, 1],
Wall[k, :, 2],
]
},
{
"title": f"Regularization λ = {lam}"
}
],
label=str(lam),
)
steps.append(step)
# --------------------------------------------------
# Layout
# --------------------------------------------------
fig.update_layout(
title=f"Regularization λ = {lambset[0]}",
width=800,
height=450,
xaxis_title="Index",
yaxis_title="Amplitude",
template="simple_white",
sliders=[
dict(
active=0,
currentvalue={
"prefix": "λ = ",
"font": {"size": 16},
},
pad={"t": 40},
steps=steps,
)
],
legend=dict(
x=0.90,
y=0.99,
),
)
---------------------------------------------------------------------------
AttributeError Traceback (most recent call last)
Cell In[6], line 51
47
48 import copy
49 for lamb in lambset:
50 # Computing the sparse NMF with tensorly (the algorithm is HALS, which is the state of the art for this problem)
---> 51 out = tl.decomposition.non_negative_parafac_hals(Yn, r, sparsity_coefficients=[lamb, lamb], init=copy.deepcopy((None, [W0, H0])))
52 # Estimated factors
53 We[lamb] = out[1][0]
54 He[lamb] = out[1][1]
File /opt/hostedtoolcache/Python/3.11.15/x64/lib/python3.11/site-packages/tensorly/decomposition/_nn_cp.py:335, in non_negative_parafac_hals(tensor, rank, n_iter_max, init, svd, tol, random_state, sparsity_coefficients, ridge_coefficients, fixed_modes, nn_modes, verbose, normalize_factors, epsilon, print_it, inner_iter_max, inner_tol, callback)
215 def non_negative_parafac_hals(
216 tensor,
217 rank,
(...) 233 callback=None,
234 ):
235 """
236 Non-negative CP decomposition via HALS
237
(...) 332 Neural Computation 24 (4): 1085-1105, 2012.
333 """
--> 335 weights, factors = initialize_cp(
336 tensor,
337 rank,
338 init=init,
339 svd=svd,
340 non_negative=True,
341 random_state=random_state,
342 normalize_factors=normalize_factors,
343 )
345 norm_tensor = tl.norm(tensor, 2) ** 2
347 n_modes = tl.ndim(tensor)
File /opt/hostedtoolcache/Python/3.11.15/x64/lib/python3.11/site-packages/tensorly/decomposition/_cp.py:110, in initialize_cp(tensor, rank, init, svd, non_negative, random_state, normalize_factors, mask, svd_mask_repeats)
105 if normalize_factors is True:
106 warnings.warn(
107 "It is not recommended to initialize a tensor with normalizing. Consider normalizing the tensor before using this function"
108 )
--> 110 kt = CPTensor(init)
111 weights, factors = kt
113 if tl.all(weights == 1):
File /opt/hostedtoolcache/Python/3.11.15/x64/lib/python3.11/site-packages/tensorly/cp_tensor.py:21, in CPTensor.__init__(self, cp_tensor)
18 def __init__(self, cp_tensor):
19 super().__init__()
---> 21 shape, rank = _validate_cp_tensor(cp_tensor)
22 weights, factors = cp_tensor
24 # Should we allow None weights?
File /opt/hostedtoolcache/Python/3.11.15/x64/lib/python3.11/site-packages/tensorly/cp_tensor.py:185, in _validate_cp_tensor(cp_tensor)
181 return 0, 0
183 weights, factors = cp_tensor
--> 185 if T.ndim(factors[0]) == 2:
186 rank = int(T.shape(factors[0])[1])
187 elif T.ndim(factors[0]) == 1:
File /opt/hostedtoolcache/Python/3.11.15/x64/lib/python3.11/site-packages/tensorly/backend/__init__.py:202, in BackendManager.dispatch_backend_method.<locals>.wrapped_backend_method(*args, **kwargs)
198 def wrapped_backend_method(*args, **kwargs):
199 """A dynamically dispatched method
200
201 Returns the queried method from the currently set backend"""
--> 202 return getattr(
203 cls._THREAD_LOCAL_DATA.__dict__.get("backend", cls._backend), name
204 )(*args, **kwargs)
File /opt/hostedtoolcache/Python/3.11.15/x64/lib/python3.11/site-packages/tensorly/backend/pytorch_backend.py:89, in PyTorchBackend.ndim(tensor)
87 @staticmethod
88 def ndim(tensor):
---> 89 return tensor.dim()
AttributeError: 'numpy.ndarray' object has no attribute 'dim'
import numpy as np
import plotly.graph_objects as go
import tensorly as tl
from copy import deepcopy
from tensorly.solvers.penalizations import scale_factors_fro
from tensorly.decomposition import non_negative_parafac_hals
# ============================================================
# Utilities
# ============================================================
def optimal_balancing(factors):
rank = factors[0].shape[1]
beta = []
for q in range(rank):
beta.append(
tl.prod(
[tl.norm(factor[:, q]) ** (1 / len(factors))
for factor in factors]
)
)
balanced_factors = []
for i in range(len(factors)):
balanced_factor = factors[i].copy()
for q in range(rank):
balanced_factor[:, q] = (
factors[i][:, q]
* beta[q]
/ tl.norm(factors[i][:, q])
)
balanced_factors.append(balanced_factor)
return balanced_factors
# ============================================================
# Problem setup
# ============================================================
rank = 3
dims = [10, 11, 12]
ndims = len(dims)
noise = 0.1
itermax = 100
np.random.seed(22)
true_factors = [
tl.tensor(np.random.rand(dims[i], rank))
for i in range(ndims)
]
CPtensor = tl.cp_tensor.CPTensor(
([10 ** (-i) for i in range(ndims)], true_factors)
)
data = (
CPtensor.to_tensor()
+ noise * tl.tensor(np.random.randn(*dims))
)
# Overestimated initialization rank
rank_e = rank + 3
init = [
10 ** (-i) * tl.tensor(np.random.rand(dims[i], rank_e))
for i in range(ndims)
]
CPinit = tl.cp_tensor.CPTensor((None, init))
# ============================================================
# Lambda grid
# ============================================================
lambda_values = np.logspace(-4, 2, 20)
all_loss_unscaled = []
all_loss_scaled_balanced = []
# ============================================================
# Run all experiments
# ============================================================
for ridge_reg in lambda_values:
print(f"Running λ = {ridge_reg:.3e}")
# Scaling
CPinit_scaled, scale = scale_factors_fro(
CPinit,
data,
[ridge_reg] * ndims,
[0] * ndims,
nonnegative=True,
)
init_scaled = CPinit_scaled.factors
# Balancing
balanced_scaled_init = optimal_balancing(init_scaled)
CPinit_scaled_balanced = tl.cp_tensor.CPTensor(
(None, balanced_scaled_init)
)
# -------------------------
# Unscaled run
# -------------------------
callback_loss = []
def callback_unscaled(factors, unnormalized_rec_errors):
loss = (
(unnormalized_rec_errors ** 2) / 2
+ sum(
ridge_reg * tl.norm(factors[1][i]) ** 2
for i in range(ndims)
)
)
callback_loss.append(float(loss))
non_negative_parafac_hals(
data,
rank_e,
n_iter_max=itermax,
tol=0,
init=deepcopy(CPinit),
verbose=False,
ridge_coefficients=ridge_reg,
callback=callback_unscaled,
)
loss_unscaled = np.asarray(callback_loss)
# -------------------------
# Scaled + balanced run
# -------------------------
callback_loss = []
def callback_scaled(factors, unnormalized_rec_errors):
loss = (
(unnormalized_rec_errors ** 2) / 2
+ sum(
ridge_reg * tl.norm(factors[1][i]) ** 2
for i in range(ndims)
)
)
callback_loss.append(float(loss))
non_negative_parafac_hals(
data,
rank_e,
n_iter_max=itermax,
tol=0,
init=deepcopy(CPinit_scaled_balanced),
verbose=False,
ridge_coefficients=ridge_reg,
callback=callback_scaled,
)
loss_scaled_balanced = np.asarray(callback_loss)
all_loss_unscaled.append(loss_unscaled)
all_loss_scaled_balanced.append(loss_scaled_balanced)
# ============================================================
# Build Plotly figure
# ============================================================
fig = go.Figure()
for k, lam in enumerate(lambda_values):
loss1 = all_loss_unscaled[k]
loss2 = all_loss_scaled_balanced[k]
visible = (k == 0)
fig.add_trace(
go.Scatter(
x=np.arange(len(loss1)),
y=loss1,
mode="lines",
line=dict(dash="dashdot"),
name="Without scaling or balancing",
visible=visible,
)
)
fig.add_trace(
go.Scatter(
x=np.arange(len(loss2)),
y=loss2,
mode="lines",
name="With scaling + balancing",
visible=visible,
)
)
# ============================================================
# Slider
# ============================================================
steps = []
for k, lam in enumerate(lambda_values):
visible = [False] * (2 * len(lambda_values))
visible[2 * k] = True
visible[2 * k + 1] = True
step = dict(
method="update",
args=[
{"visible": visible},
{
"title":
f"NCPD with ℓ₂ regularization "
f"(λ = {lam:.2e})"
},
],
label=f"{lam:.1e}",
)
steps.append(step)
sliders = [
dict(
active=0,
currentvalue={
"prefix": "λ = "
},
pad={"t": 50},
steps=steps,
)
]
# ============================================================
# Layout
# ============================================================
fig.update_layout(
title=f"NCPD with ℓ₂ regularization (λ = {lambda_values[0]:.2e})",
sliders=sliders,
xaxis_title="Iteration",
yaxis_title="Cost function",
template="plotly_white",
legend=dict(
x=0.01,
y=0.99,
),
height=500,
)
fig.update_yaxes(type="log")
fig.show()
---------------------------------------------------------------------------
AttributeError Traceback (most recent call last)
Cell In[7], line 61
57 tl.tensor(np.random.rand(dims[i], rank))
58 for i in range(ndims)
59 ]
60
---> 61 CPtensor = tl.cp_tensor.CPTensor(
62 ([10 ** (-i) for i in range(ndims)], true_factors)
63 )
64
File /opt/hostedtoolcache/Python/3.11.15/x64/lib/python3.11/site-packages/tensorly/cp_tensor.py:21, in CPTensor.__init__(self, cp_tensor)
18 def __init__(self, cp_tensor):
19 super().__init__()
---> 21 shape, rank = _validate_cp_tensor(cp_tensor)
22 weights, factors = cp_tensor
24 # Should we allow None weights?
File /opt/hostedtoolcache/Python/3.11.15/x64/lib/python3.11/site-packages/tensorly/cp_tensor.py:209, in _validate_cp_tensor(cp_tensor)
203 raise ValueError(
204 "All the factors of a CP tensor should have the same number of column."
205 f"However, factors[0].shape[1]={rank} but factors[{i}].shape[1]={T.shape(factor)[1]}."
206 )
207 shape.append(current_mode_size)
--> 209 if weights is not None and T.shape(weights) != (rank,):
210 raise ValueError(
211 f"Given factors for a rank-{rank} CP tensor but len(weights)={T.shape(weights)}."
212 )
214 return tuple(shape), rank
File /opt/hostedtoolcache/Python/3.11.15/x64/lib/python3.11/site-packages/tensorly/backend/__init__.py:202, in BackendManager.dispatch_backend_method.<locals>.wrapped_backend_method(*args, **kwargs)
198 def wrapped_backend_method(*args, **kwargs):
199 """A dynamically dispatched method
200
201 Returns the queried method from the currently set backend"""
--> 202 return getattr(
203 cls._THREAD_LOCAL_DATA.__dict__.get("backend", cls._backend), name
204 )(*args, **kwargs)
File /opt/hostedtoolcache/Python/3.11.15/x64/lib/python3.11/site-packages/tensorly/backend/pytorch_backend.py:85, in PyTorchBackend.shape(tensor)
83 @staticmethod
84 def shape(tensor):
---> 85 return tuple(tensor.shape)
AttributeError: 'list' object has no attribute 'shape'
import numpy as np
import tensorly as tl
from copy import deepcopy
from plotly.subplots import make_subplots
import plotly.graph_objects as go
from tensorly.solvers.penalizations import scale_factors_fro
from tensorly.decomposition import non_negative_parafac_hals
# ============================================================
# Balancing routine
# ============================================================
def optimal_balancing(factors):
rank = factors[0].shape[1]
beta = []
for q in range(rank):
beta.append(
tl.prod(
[
tl.norm(factor[:, q]) ** (1 / len(factors))
for factor in factors
]
)
)
balanced_factors = []
for i in range(len(factors)):
balanced_factor = factors[i].copy()
for q in range(rank):
balanced_factor[:, q] = (
factors[i][:, q]
* beta[q]
/ tl.norm(factors[i][:, q])
)
balanced_factors.append(balanced_factor)
return balanced_factors
# ============================================================
# Problem setup
# ============================================================
rank = 3
dims = [10, 11, 12]
ndims = len(dims)
noise = 0.1
itermax = 100
np.random.seed(22)
true_factors = [
tl.tensor(np.random.rand(dims[i], rank))
for i in range(ndims)
]
CPtensor = tl.cp_tensor.CPTensor(
([10 ** (-i) for i in range(ndims)], true_factors)
)
data = (
CPtensor.to_tensor()
+ noise * tl.tensor(np.random.randn(*dims))
)
# ============================================================
# Initialization
# ============================================================
rank_e = rank + 3
init = [
10 ** (-i) * tl.tensor(np.random.rand(dims[i], rank_e))
for i in range(ndims)
]
CPinit = tl.cp_tensor.CPTensor((None, init))
# ============================================================
# Lambda values to compare
# ============================================================
lambda_values = [1e-4, 1.4e-1]
results = {}
# ============================================================
# Run experiments
# ============================================================
for ridge_reg in lambda_values:
print(f"Running λ = {ridge_reg:.2e}")
# Scaling
CPinit_scaled, scale = scale_factors_fro(
CPinit,
data,
[ridge_reg] * ndims,
[0] * ndims,
nonnegative=True,
)
init_scaled = CPinit_scaled.factors
# Balancing
balanced_scaled_init = optimal_balancing(init_scaled)
CPinit_scaled_balanced = tl.cp_tensor.CPTensor(
(None, balanced_scaled_init)
)
# ========================================================
# Unscaled initialization
# ========================================================
callback_loss = []
def callback_unscaled(factors, unnormalized_rec_errors):
loss = (
(unnormalized_rec_errors ** 2) / 2
+ sum(
ridge_reg * tl.norm(factors[1][i]) ** 2
for i in range(ndims)
)
)
callback_loss.append(float(loss))
non_negative_parafac_hals(
data,
rank_e,
n_iter_max=itermax,
tol=0,
init=deepcopy(CPinit),
verbose=False,
ridge_coefficients=ridge_reg,
callback=callback_unscaled,
)
loss_unscaled = np.asarray(callback_loss)
# ========================================================
# Scaled + balanced initialization
# ========================================================
callback_loss = []
def callback_scaled(factors, unnormalized_rec_errors):
loss = (
(unnormalized_rec_errors ** 2) / 2
+ sum(
ridge_reg * tl.norm(factors[1][i]) ** 2
for i in range(ndims)
)
)
callback_loss.append(float(loss))
non_negative_parafac_hals(
data,
rank_e,
n_iter_max=itermax,
tol=0,
init=deepcopy(CPinit_scaled_balanced),
verbose=False,
ridge_coefficients=ridge_reg,
callback=callback_scaled,
)
loss_scaled_balanced = np.asarray(callback_loss)
results[ridge_reg] = {
"loss": loss_unscaled,
"loss_scaled_balanced": loss_scaled_balanced,
}
# ============================================================
# Plotly figure
# ============================================================
fig = make_subplots(
rows=1,
cols=2,
shared_yaxes=True,
horizontal_spacing=0.08,
subplot_titles=[
"λ = 10⁻⁴",
"λ = 1.4 × 10⁻¹",
],
)
for col, lam in enumerate(lambda_values, start=1):
loss = results[lam]["loss"]
loss_scaled_balanced = results[lam]["loss_scaled_balanced"]
fig.add_trace(
go.Scatter(
x=np.arange(len(loss)),
y=loss,
mode="lines",
line=dict(dash="dashdot"),
name="Without scaling or balancing",
showlegend=(col == 1),
),
row=1,
col=col,
)
fig.add_trace(
go.Scatter(
x=np.arange(len(loss_scaled_balanced)),
y=loss_scaled_balanced,
mode="lines",
name="With scaling + balancing",
showlegend=(col == 1),
),
row=1,
col=col,
)
fig.update_yaxes(
type="log",
title_text="Cost function",
row=1,
col=1,
)
fig.update_xaxes(title_text="Iteration")
fig.update_layout(
template="plotly_white",
width=1100,
height=500,
margin=dict(l=20, r=20, t=70, b=20),
legend=dict(
orientation="h",
yanchor="bottom",
y=1.05,
xanchor="center",
x=0.5,
),
)
fig.show()
---------------------------------------------------------------------------
AttributeError Traceback (most recent call last)
Cell In[8], line 65
61 tl.tensor(np.random.rand(dims[i], rank))
62 for i in range(ndims)
63 ]
64
---> 65 CPtensor = tl.cp_tensor.CPTensor(
66 ([10 ** (-i) for i in range(ndims)], true_factors)
67 )
68
File /opt/hostedtoolcache/Python/3.11.15/x64/lib/python3.11/site-packages/tensorly/cp_tensor.py:21, in CPTensor.__init__(self, cp_tensor)
18 def __init__(self, cp_tensor):
19 super().__init__()
---> 21 shape, rank = _validate_cp_tensor(cp_tensor)
22 weights, factors = cp_tensor
24 # Should we allow None weights?
File /opt/hostedtoolcache/Python/3.11.15/x64/lib/python3.11/site-packages/tensorly/cp_tensor.py:209, in _validate_cp_tensor(cp_tensor)
203 raise ValueError(
204 "All the factors of a CP tensor should have the same number of column."
205 f"However, factors[0].shape[1]={rank} but factors[{i}].shape[1]={T.shape(factor)[1]}."
206 )
207 shape.append(current_mode_size)
--> 209 if weights is not None and T.shape(weights) != (rank,):
210 raise ValueError(
211 f"Given factors for a rank-{rank} CP tensor but len(weights)={T.shape(weights)}."
212 )
214 return tuple(shape), rank
File /opt/hostedtoolcache/Python/3.11.15/x64/lib/python3.11/site-packages/tensorly/backend/__init__.py:202, in BackendManager.dispatch_backend_method.<locals>.wrapped_backend_method(*args, **kwargs)
198 def wrapped_backend_method(*args, **kwargs):
199 """A dynamically dispatched method
200
201 Returns the queried method from the currently set backend"""
--> 202 return getattr(
203 cls._THREAD_LOCAL_DATA.__dict__.get("backend", cls._backend), name
204 )(*args, **kwargs)
File /opt/hostedtoolcache/Python/3.11.15/x64/lib/python3.11/site-packages/tensorly/backend/pytorch_backend.py:85, in PyTorchBackend.shape(tensor)
83 @staticmethod
84 def shape(tensor):
---> 85 return tuple(tensor.shape)
AttributeError: 'list' object has no attribute 'shape'
import numpy as np
import plotly.graph_objects as go
eps = 0.05
x1 = np.linspace(eps, 4.5, 120)
x2 = np.linspace(eps, 4.5, 120)
X1, X2 = np.meshgrid(x1, x2)
y1 = 1.0
y2_values = [0.4, 1.0, 2.0, 3.5]
def kl2(y1, y2, X1, X2):
return y1 * np.log(y1 / X1) + X1 - y1 + y2 * np.log(y2 / X2) + X2 - y2
Z0 = kl2(y1, y2_values[0], X1, X2)
fig = go.Figure()
fig.add_trace(
go.Contour(
x=x1,
y=x2,
z=Z0,
colorscale="Viridis",
contours=dict(showlabels=True),
colorbar=dict(title="D_KL"),
hovertemplate="x₁=%{x:.2f}<br>x₂=%{y:.2f}<br>KL=%{z:.3f}<extra></extra>",
name="Perte",
)
)
fig.add_trace(
go.Scatter(
x=[y1],
y=[y2_values[0]],
mode="markers",
marker=dict(color="red", size=12, symbol="x"),
name="Minimum",
hovertemplate="minimum : (%{x:.2f}, %{y:.2f})<extra></extra>",
)
)
frames = []
for y2 in y2_values:
Z = kl2(y1, y2, X1, X2)
frames.append(
go.Frame(
name=f"{y2}",
data=[
go.Contour(
x=x1,
y=x2,
z=Z,
colorscale="Viridis",
contours=dict(showlabels=True),
colorbar=dict(title="D_KL"),
),
go.Scatter(
x=[y1],
y=[y2],
mode="markers",
marker=dict(color="red", size=12, symbol="x"),
),
],
traces=[0, 1],
)
)
fig.frames = frames
fig.update_layout(
title="Courbes de niveau de la divergence de KL — le minimum est atteint en x = y",
height=520,
margin=dict(l=20, r=20, t=70, b=20),
xaxis_title="x₁",
yaxis_title="x₂",
sliders=[
dict(
active=0,
currentvalue={"prefix": "Valeur de y₂ : "},
pad={"t": 30},
steps=[
dict(
label=str(y2),
method="animate",
args=[[f"{y2}"], {"mode": "immediate", "frame": {"duration": 0, "redraw": True}, "transition": {"duration": 0}}],
)
for y2 in y2_values
],
)
],
)
fig.show()
import numpy as np
from numpy import size
import matplotlib.pyplot as plt
import numpy as np
import bokeh
from bokeh.layouts import column, row
from bokeh.plotting import figure, show, output_notebook
from bokeh.models import Slider, ColumnDataSource, CustomJS, LogColorMapper
from bokeh.palettes import Category10
output_notebook()
# Showing plots for 1d Kullback Leibler with slider for data position
x = np.linspace(1e-5, 10, 300)
def kl_divergence(p, q):
"""Calculate the KL divergence between two distributions."""
return np.sum(p * np.log(p / q) + q - p)
y = np.zeros_like(x)
p = 2.5 # Initial reference distribution parameter
for i, q in enumerate(x):
y[i] = kl_divergence(p, q)
# Add interactive sliders for the reference distribution
slider = Slider(start=0.1, end=5, value=2.5, step=0.1, title="Reference Distribution (p)")
source = ColumnDataSource(data=dict(x=x, y=y))
plot = figure(title="KL Divergence", x_axis_label='q', y_axis_label='KL(p, q)', width=600,
height=400)
plot.line('x', 'y', source=source, line_width=2, color=Category10[10][0])
callback = CustomJS(args=dict(source=source, slider=slider), code="""
const data = source.data;
const p = slider.value;
for (let i = 0; i < data['x'].length; i++) {
const q = data['x'][i];
data['y'][i] = p * Math.log(p / q) + q - p; // KL divergence formula
}
source.change.emit();
""")
slider.js_on_change('value', callback)
show(column(slider, plot))
